Auris/Yaris Inverter Logic Board

Brand: EVBMW
Product Code: Yar_G3
Availability: 11
Attachments:
- Connector_BOM_Auris.pdf

Price: 275.00€
Ex Tax: 275.00€

- +

Add to Compare

Ask Question

Email a Friend

Download PDF

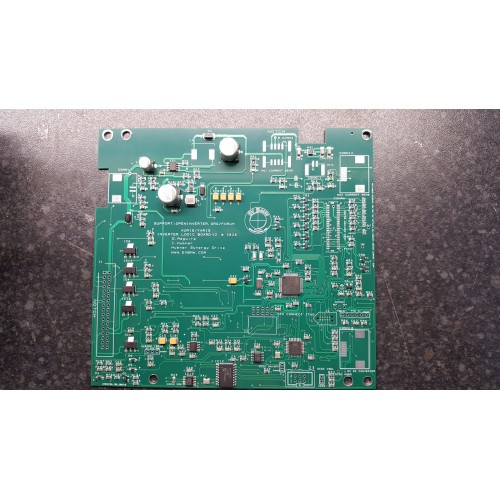

V2 Logic board PCB for the Toyota Yaris and Auris Gen3 inverter with most SMD parts placed.
Runs the MG2 power stage as an inverter and MG1 power stage for optional AC battery charging via the boost converter.
Connectors NOT supplied apart from 50 way JST.
Please see attached connector BOM for part details.
Supplied fully programmed with WiFi module AND 50 Way JST connector.
Also includes AMPSEAL breakout board.

Please see the relevant support thread on the OpenInverter forum linked below for details
Price includes worldwide tracked postage.
Fully open source project.
Support via the openinverter.org Forum
Software and resources available on Github
Software for charging is now available:
https://github.com/celeron55/prius3charger_buck

Delivery : up to 4 weeks from order.
No tax or other surcharges.
